PCB Specification

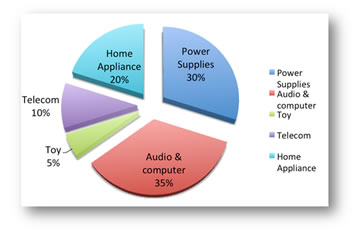

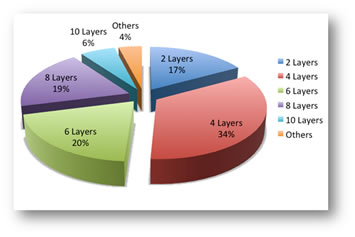

HPCB is strong in providing PCB with total solution. Its PCB ranges from Single, Double, Multi-layer up to 10 layers. We are able to provide quick turnaround PCB within shortest time. Our Metal PCB and HDI PCB also receive good recognition from worldwide customers and our products are used in different applications. |
|
|
|
| |
|
HDI PCB
Multilayer PCB
Upto 18 layers. Process and Finishing Tab gold plating/Hot air levelling/Nickel plating/Gold plating/Immersion gold/Immersion silver/Cu entek/ Punching/Routing/V-cut/Peelable mask.
Double sided PCB
Base material including FR-4; CEM3. Process and Finishing : Tab gold plating/Hot air levelling/Nickel plating/Gold plating. Immersion gold/Immersion silver/ Cu entek/Punching/Routing/ V-cut/Carbon ink/Peelable mask/Silver through hole.
Key Specifications/Special Features
-
Minimum Trace Width: 0.10/0.10mm
-
Minimum Space Width: 0.006 inch normal (0.004 inch minimum)
-
Conductor: 1 oz, 2 oz, 3 oz, 4 oz finish copper thk.
-
HAL-lead free, Immersion gold, OSP.
-
QC Spec: IPC-A600 G
|
|
|
